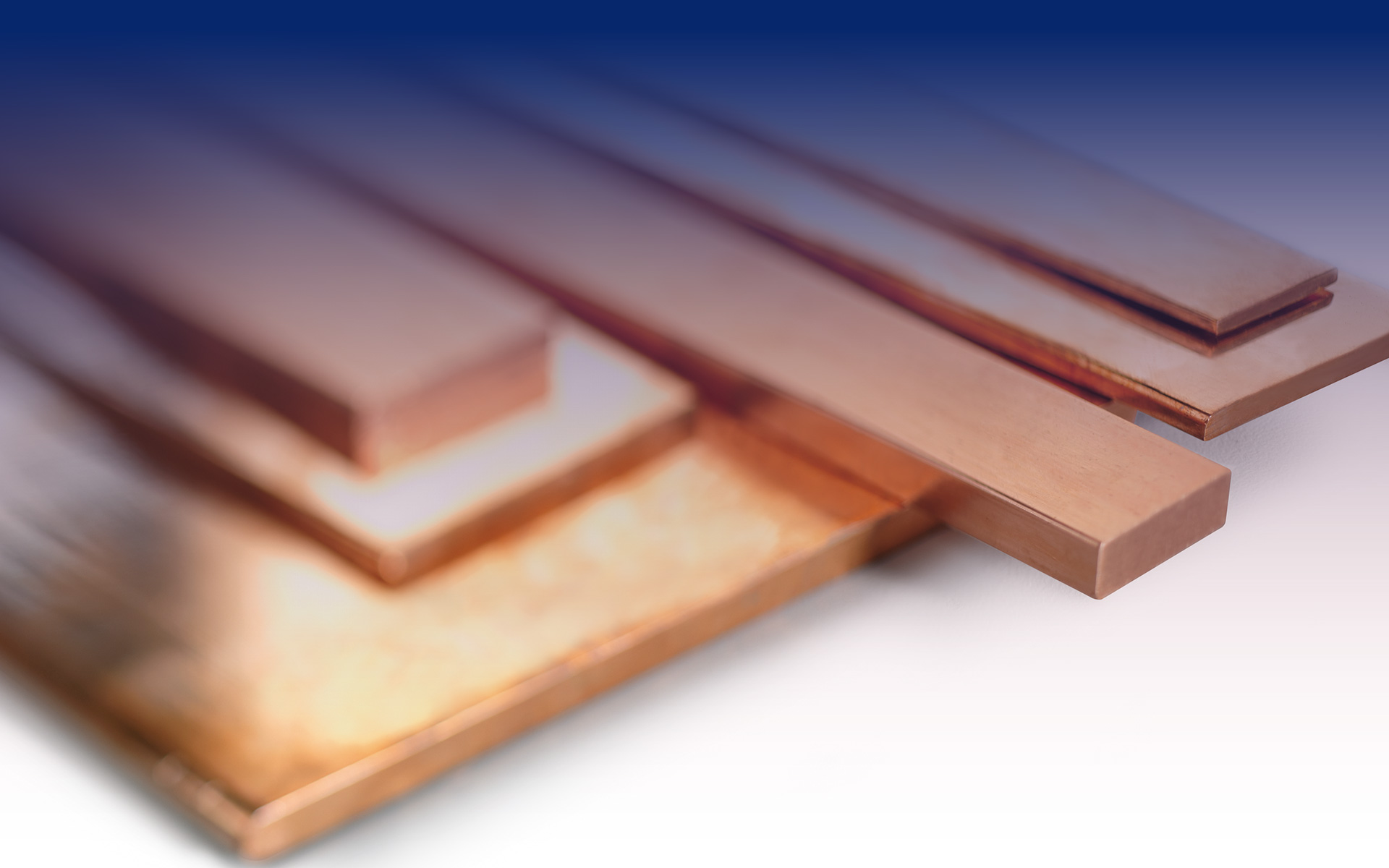

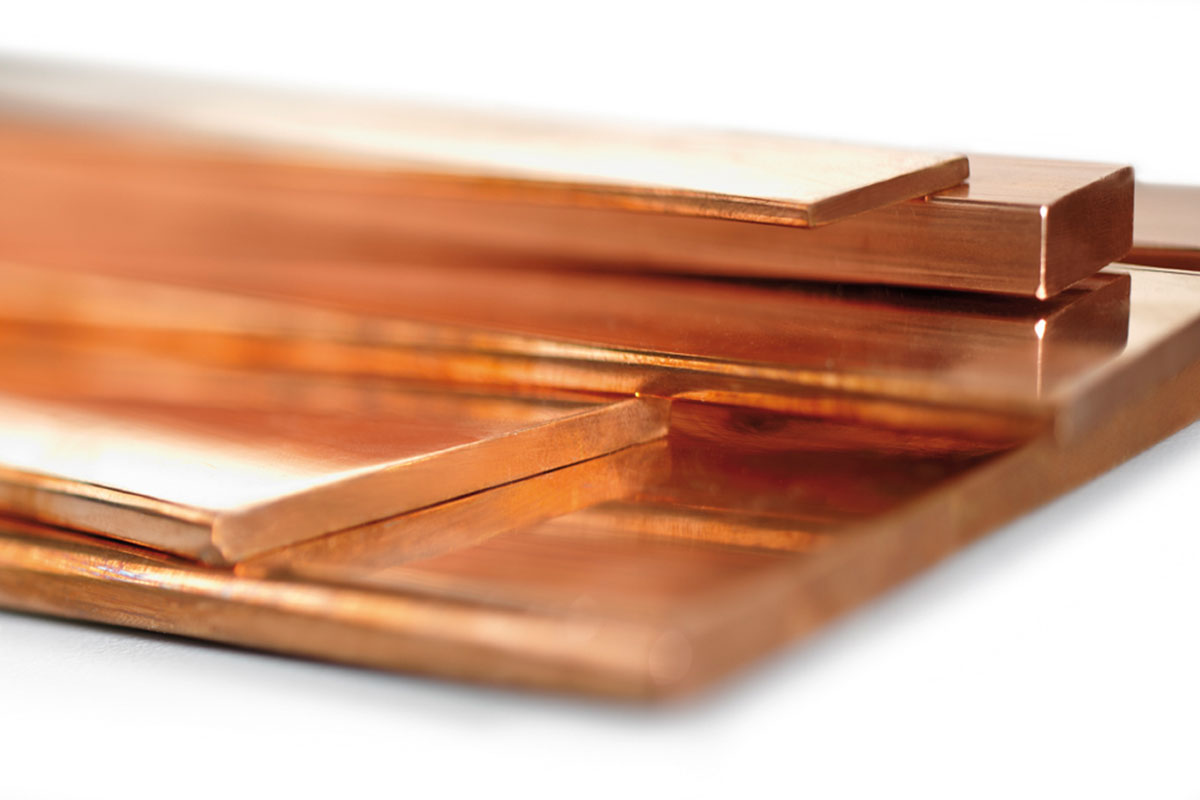

■ Copper Bus Bar | Rectangular Copper Bar
Our copper bus bar is designed for electrical applications and installations, fully compliant with ASTM B187. This certification ensures the suitability for general electrical use, making IT ideal for a wide range of industrial and electrical applications.
■ High-Quality Copper for Electrical Installations
Manufactured from premium materials and meeting the most relevant international standards, our copper coils are widely used in electrical connections, installations, capital goods, and conduits. For enhanced performance, we offer tin-plated copper bars, providing superior corrosion resistance and improved solderability.
■ Electrical Properties & Performance
To guarantee optimal performance, our copper flat bars undergo rigorous electrical testing at 20°C, measuring volume resistivity, mass resistivity, and conductivity. Detailed electrical specifications for each copper alloy are available in our technical data section.
■ Current Carrying Capacity – DIN 43671 Compliance
- AC up to 60 Hz
- DC and AC 16 2/3 Hz
- Static characteristics
Choose our high-conductivity copper bars for reliable electrical performance in power distribution, switchgear, transformers, and more.
VBT USA, Inc. – Your Trusted Partner for High-Quality Copper Busbars with Diverse Dimensional Capabilities.
PLATINGS
Coating Options for Superior Performance.
To meet the needs of every application, we supply copper busbars with different coatings:
- Tin-Plated: Protects against corrosion and improves weldability.
SOLUTIONS
DATA SHEET
| Coating | WIRE | STRIP |
|---|---|---|
| Tin coating | ⚫ | ⚫ |
| Brass coating | ⚫ | ⚫ |
| Electro-galvanising | ⚫ | ⚫ |
| Nickel coating | ⚫ | ⚫ |
| Plastic coating | ⚫ | ⚫ |
| Copper coating | ⚫ | ⚫ |
| Gold | ⚫ | |
| Silver coating | ⚫ | |
| Pre-painted / Lacquered | ⚫ | |
| Selective Coating | ⚫ |
a) The percentage of copper is determined from the difference between the total impurities and 100%. The copper value does not include Ag.
b) The maximum impurities in ppm of C10100 are: 4 antimony, 5 arsenic, 1 bismuth, 1 cadmium, 10 iron, 5 lead, 0.5 manganese, 10 nickel, 5 oxygen, 3 phosphorus, 3 selenium, 25 silver, 15 sulfur, 2 tellurium, 2 tin and 1 zinc.
c) The percentage of copper is obtained from the difference between the total impurities and 100%.
d) Copper (including silver) + phosphorus, min.
e) C10400, C10500 and C10700 are oxygen-free coppers containing a specific amount of silver. The compositions of these alloys are equivalent to C10200 plus the amount of silver added.
f) Minimum silver values in troy ounces per ton avoirdupois (1 oz/ton equals 0.0034%).
g) Oxygen and trace elements may vary depending on the process.
h) C11300, C11400, C11500 and C11600 are electrolytic copper alloys (ETP) with silver. The compositions of these alloys are equivalent to C11000 plus the amount of silver added.
| Coating | WIRE | STRIP |
|---|---|---|
| Coil | ⚫ | ⚫ |
| Orbit | ⚫ | |
| Hook / Carrier | ⚫ | |
| Z reel | ⚫ | |
| Spooled reel | ⚫ | |
| Plastic / Wood / Metal Reel | ⚫ | |
| Bar | ⚫ | |
| Traverse / oscillated wound strip with or without cardboard core, Wood / metal reel | ⚫ | |
| Wooden reel | ||
| CTL (Cut to Length) | ⚫ | ⚫ |
a UNS C10100, C10200, C10300, C10400, C10500, C10700, C10920, C10930, C10940, C11000, C11300, C11400, C11500, C11600 and C12000 copper alloy soles, bars and profiles shall conform to the electrical resistivity limits prescribed in the table for the specified copper, temper, shape and size when determined in accordance with Test Method B193.
[table “” not found /]
aksi = 1000 psi
b A slight straightening operation is allowed.
c in any case, a minimum gauge length of 1 inch shall be used.
d Special agreement between the manufacturer or supplier and the purchaser.
NOTE: When the specified tolerance value is all positive or all negative, the values expressed must be doubled.
[table “” not found /]
